Philips B Line 172B1TFL/00 computer monitor 43.2 cm (17") 1280 x 1024 pixels LED Touchscreen Black

In stock

SKU

172B1TFL/00

Add to Compare

£398.12 £331.77

172B1TFL Open-frame touch-screen monitor

More Information
Display	17" 1280 x 1024 pixels
Native aspect ratio	5:4
Built-in camera	No
SKU	172B1TFL/00
EAN	8712581772918
Manufacturer	Philips
Availability	In Stock
Product Family	B Line
PDF URLs	View PDF View PDF View PDF

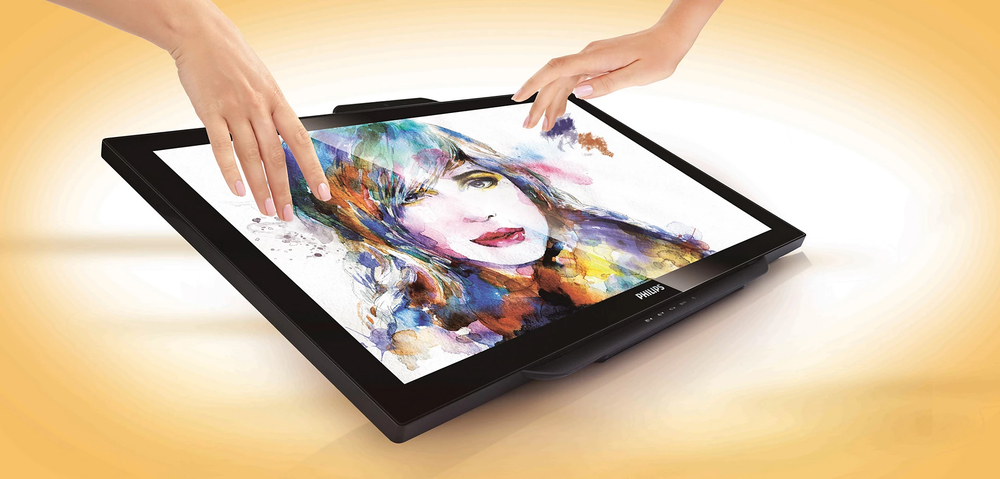

SmoothTouch display for natural, fluid touch response

This Philips display uses Projected capacitive 10 point touch technology for fluid response. You can fully utilize the new capabilities of touch based applications, and bring your older applications to life. Touch-type with 10 fingers, or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.

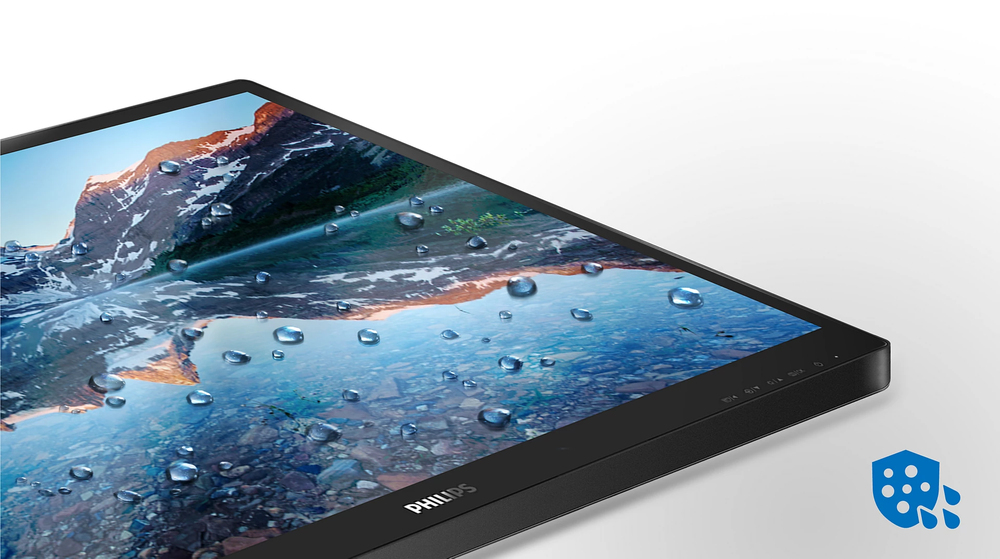

Monitor front surface meets IP65 for water & dust resistance

For less than perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets international the IP rating for water and dust resistance, it will hold up to water splashes and dust that happen in the everyday world.

Anti-glare coating (AG) for reducing the visual interference

Anti-Glare Coating, abbreviated AG, can reduce the glare of your touch monitor screen. This chemical process is made in the back of the touch glass and therefore you don't need an additional film to have comfort in your eyes. Images are crystal clear with pure colour and great clarity.

LowBlue Mode for easy on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

Less eye fatigue with Flicker-Free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

SmartContrast for rich black details

SmartContrast is a Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.

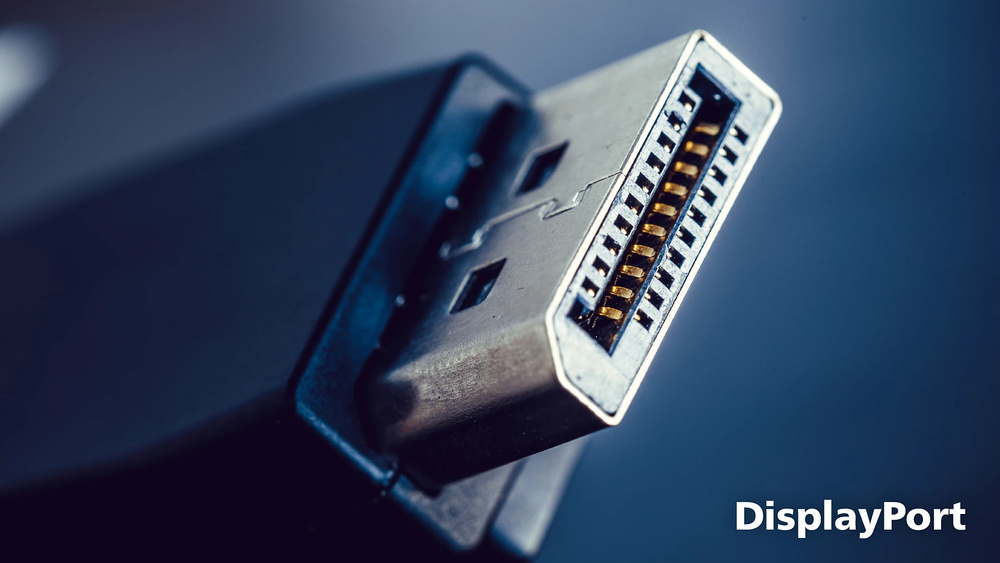

DisplayPort connection for maximum visuals

DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.

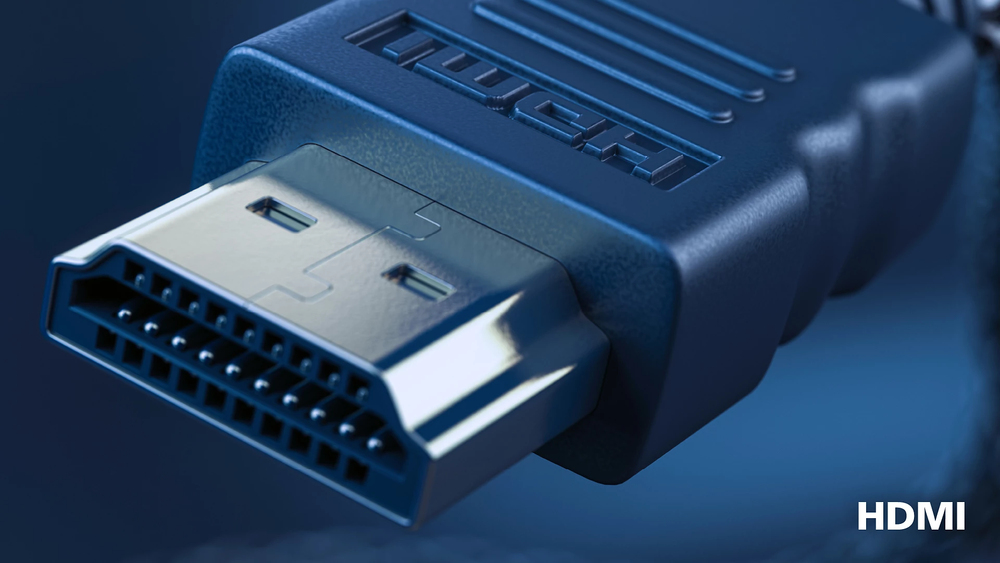

HDMI ensures universal digital connectivity

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).

Audio
Built-in speaker(s)	No
Performance
Built-in speaker(s)	No
Mean time between failures (MTBF)	70000 h
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Low Blue Light technology	Yes
Flicker-free technology	Yes
Component video sync	Separate sync, Sync-on-green (SOG)
Other operating systems supported	Android
EasyRead mode	Yes
Display
Screen shape	Flat
Dynamic contrast ratio marketing name	SmartContrast
Display number of colours	16.78 million colours
Native aspect ratio	5:4
Pixel density	96 ppi
DDC/CI	Yes
Maximum refresh rate	75 Hz
Display technology	LED
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	140°
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 75 Hz
Aspect ratio	5:4
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm
Backlight type	W-LED
Display resolution	1280 x 1024 pixels
Response time	4 ms
Display diagonal	43.2 cm (17")
Contrast ratio (typical)	1000:1
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	TN
Display diagonal (metric)	43.2 cm
Display sRGB	Yes
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Haze rate	5%
Display brightness	400 cd/m²
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	21
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and Play	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Heavy metals free	Hg (mercury)
Certification	CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP65
Mean time between failures (MTBF)	70000 h
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
Number of upstream ports	1
USB Type-A downstream ports quantity	2
DVI port	Yes
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
HDMI ports quantity	1.4
DisplayPorts quantity	1.2
Audio output	Yes
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
USB Touch port	Yes
Technical details
Height (without stand)	329 mm
Depth (without stand)	49 mm
Width (without stand)	383 mm
Cable lock slot	Yes
Mean time between failures (MTBF)	70000 h
HDMI	Yes
Display viewable area (HxV)	339.72 x 270.336 mm
Product colour	Black
Picture enhancement	SmartImage
Recyclable packaging material	100%
Regulatory Approvals	CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified
Front bezel colour	Black
Doesn't contain	PVC/BFR, Mercury
Compliance certificates	RoHS
Power supply type	External
Touch method	Stylus, Finger, Glove
Surface hardness	7H
EasyRead mode	Yes
Touchscreen	Yes
Number of simultaneous touchpoints	10
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Bundled software	SmartControl

Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Operation, Stand-by
On Screen Display (OSD)	Yes
Number of OSD languages	21
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and Play	Yes
Height adjustment	No
Cable lock slot type	Kensington
Palm rejection area	30 x 30 mm
Power
Power supply type	External
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	12.1 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	7.9 W
Energy efficiency class (SDR)	E
European Product Registry for Energy Labelling (EPREL) code	420487
Operational conditions
Non-operating altitude	0 - 12192 m
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Weight & dimensions
Height (without stand)	329 mm
Depth (without stand)	49 mm
Width (without stand)	383 mm
Weight (without stand)	4.3 kg
Package width	465 mm
Package depth	123 mm
Package height	384 mm
Package weight	5.83 kg
Packaging data
Package width	465 mm
Package depth	123 mm
Package height	384 mm
Package weight	5.83 kg
Manual	Yes
Cables included	HDMI, DisplayPort, USB Type-A to USB Type-B, AC
Bundled software	SmartControl
Packaging content
Manual	Yes
Cables included	HDMI, DisplayPort, USB Type-A to USB Type-B, AC
Bundled software	SmartControl
Sustainability
European Product Registry for Energy Labelling (EPREL) code	420487
Doesn't contain	PVC/BFR, Mercury
Indication
LED indicators	Operation, Stand-by
Other features
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	70000 h
Display viewable area (HxV)	339.72 x 270.336 mm
Certification	CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
Picture enhancement	SmartImage
Recyclable packaging material	100%
Regulatory Approvals	CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified
Touch method	Stylus, Finger, Glove
EasyRead mode	Yes
International Protection (IP) code	IP65
Compliance certificates	RoHS
Energy efficiency class (old)	E
Height (without stand)	329 mm
Depth (without stand)	49 mm
Width (without stand)	383 mm
HDMI	Yes
Surface hardness	7H
Power supply type	External
Manual	Yes
Touchscreen	Yes
Number of simultaneous touchpoints	10
Front bezel colour	Black
Certificates
Certification	CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
Logistics data
Harmonized System (HS) code	85285210
